Fitzroy® Parallel track systems are an excellent solution for taking advantage of wide openings or spaces but without the internal space required for large sliding doors.

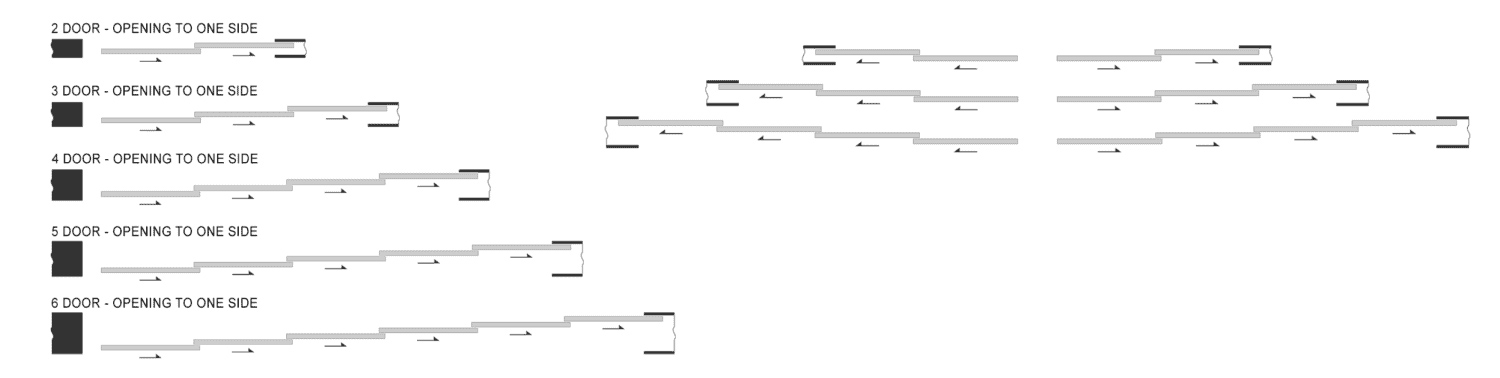

Our A100P Alloy Light Fitzroy® Parallel (for doors up to 100kg) and our A500P Alloy Medium Fitzroy® Parallel (for doors up to 500kg) can accommodate arrangements from two to six doors opening to either one or both sides behind a wall, fixed panel or into a cavity.

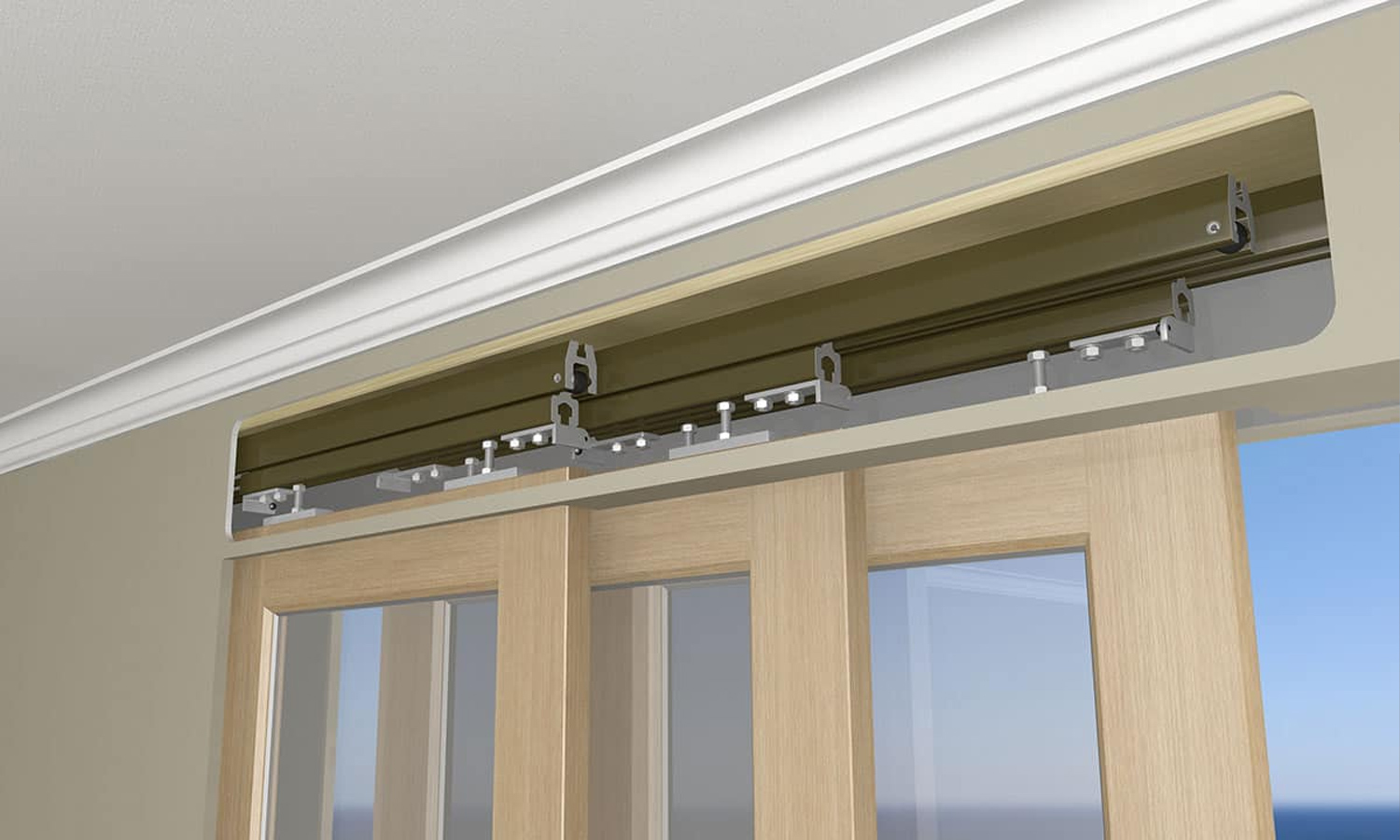

These top hung systems include sturdy and robust custom connecting mechanisms that enable the doors to open and close sequentially with only the leading door requiring operation.
As with our straight sliding door tracks the A100P and A500P suit a large range of doors widths and heights, are compatible with a wide variety of door constructions and provide easy, smooth and reliable operation.
Get in touch with our experienced team for personalised advice for your project from specification to installation.

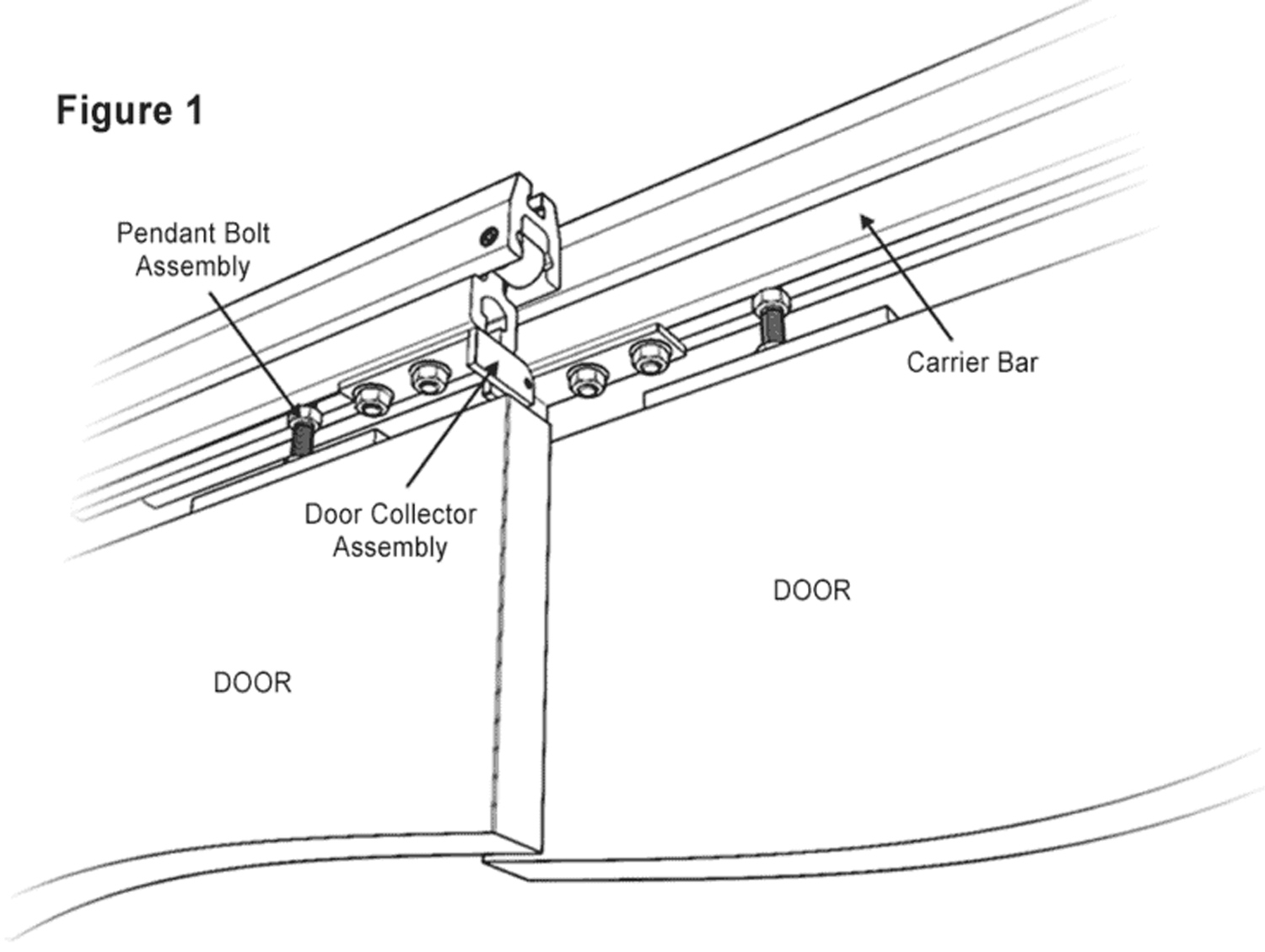

Figure 1

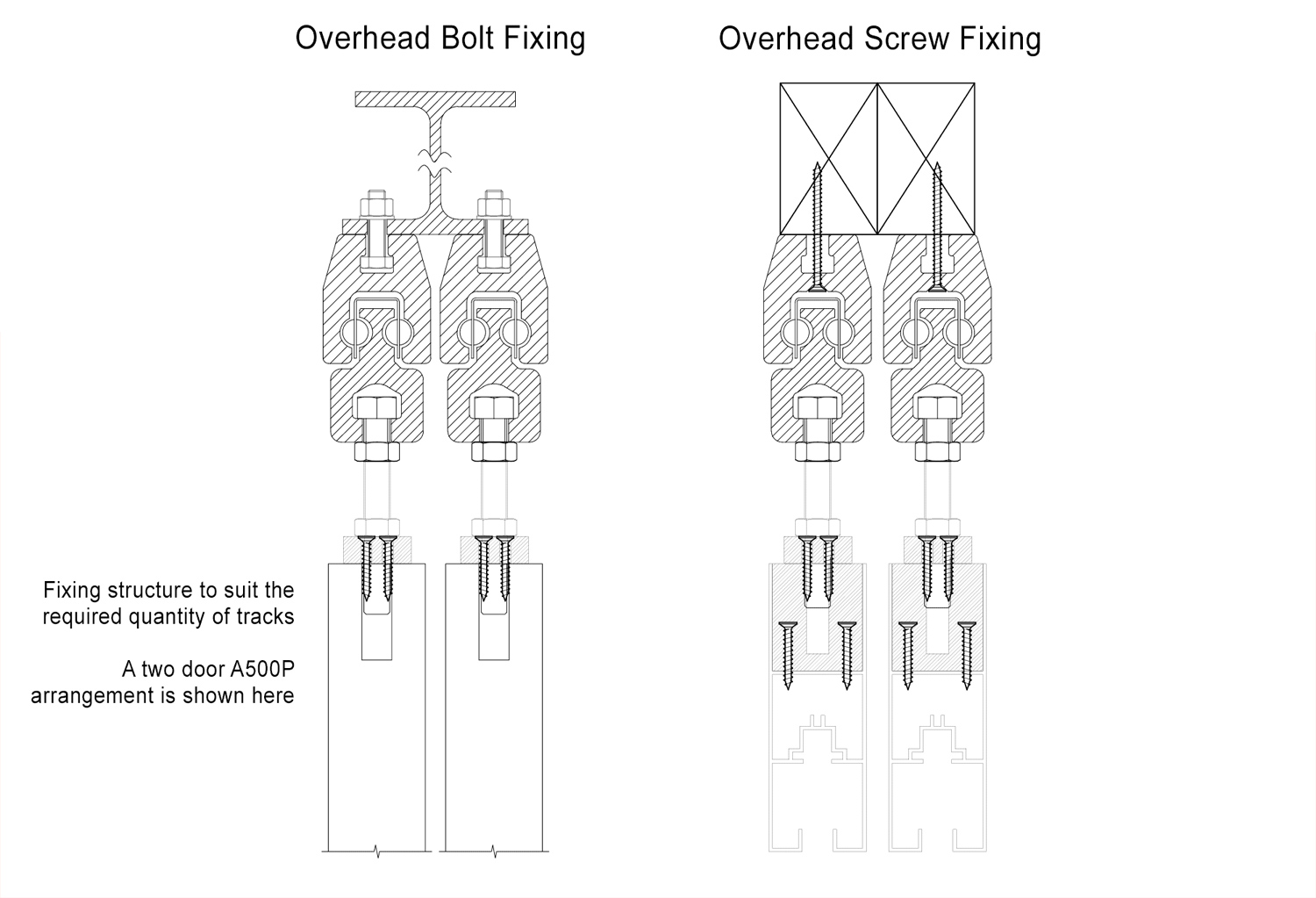

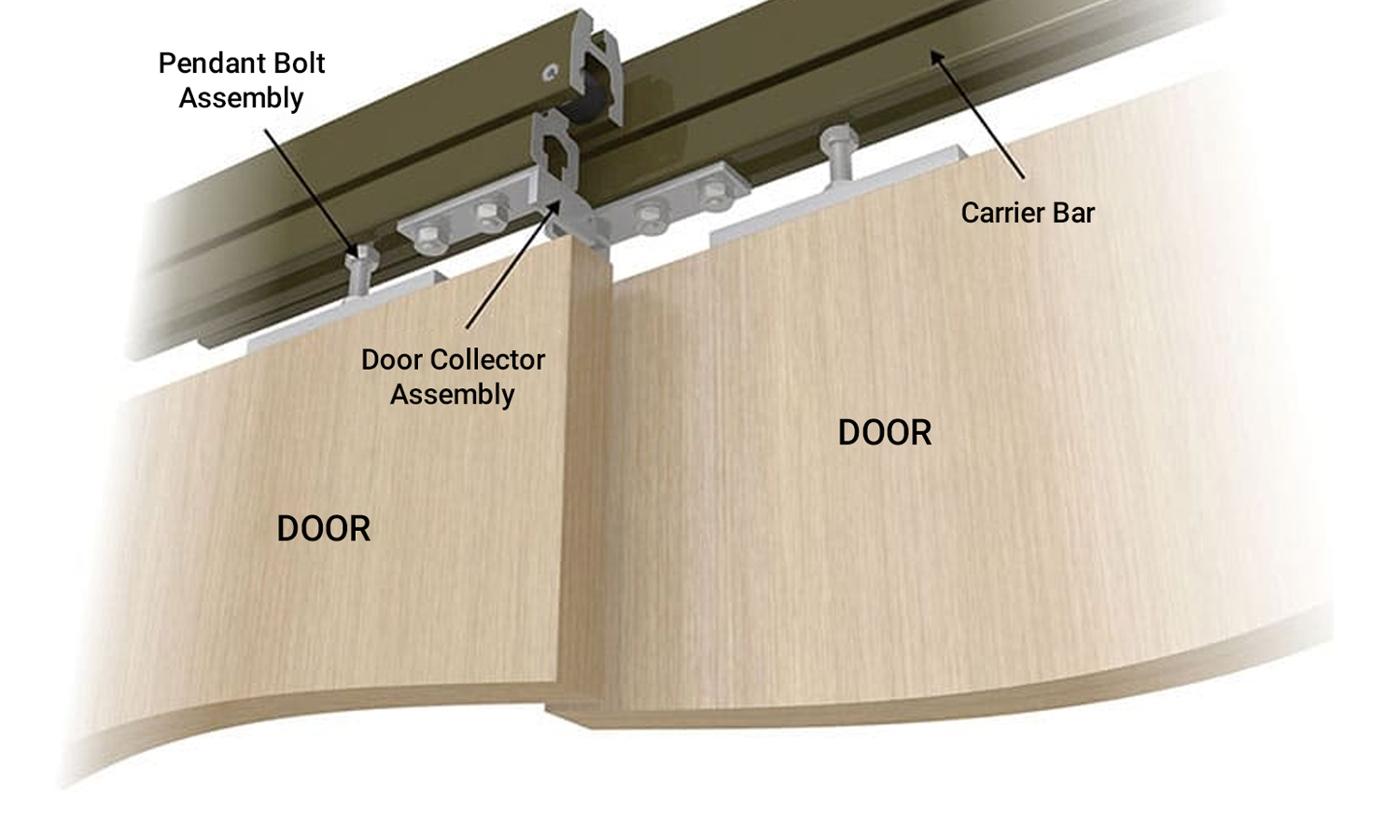

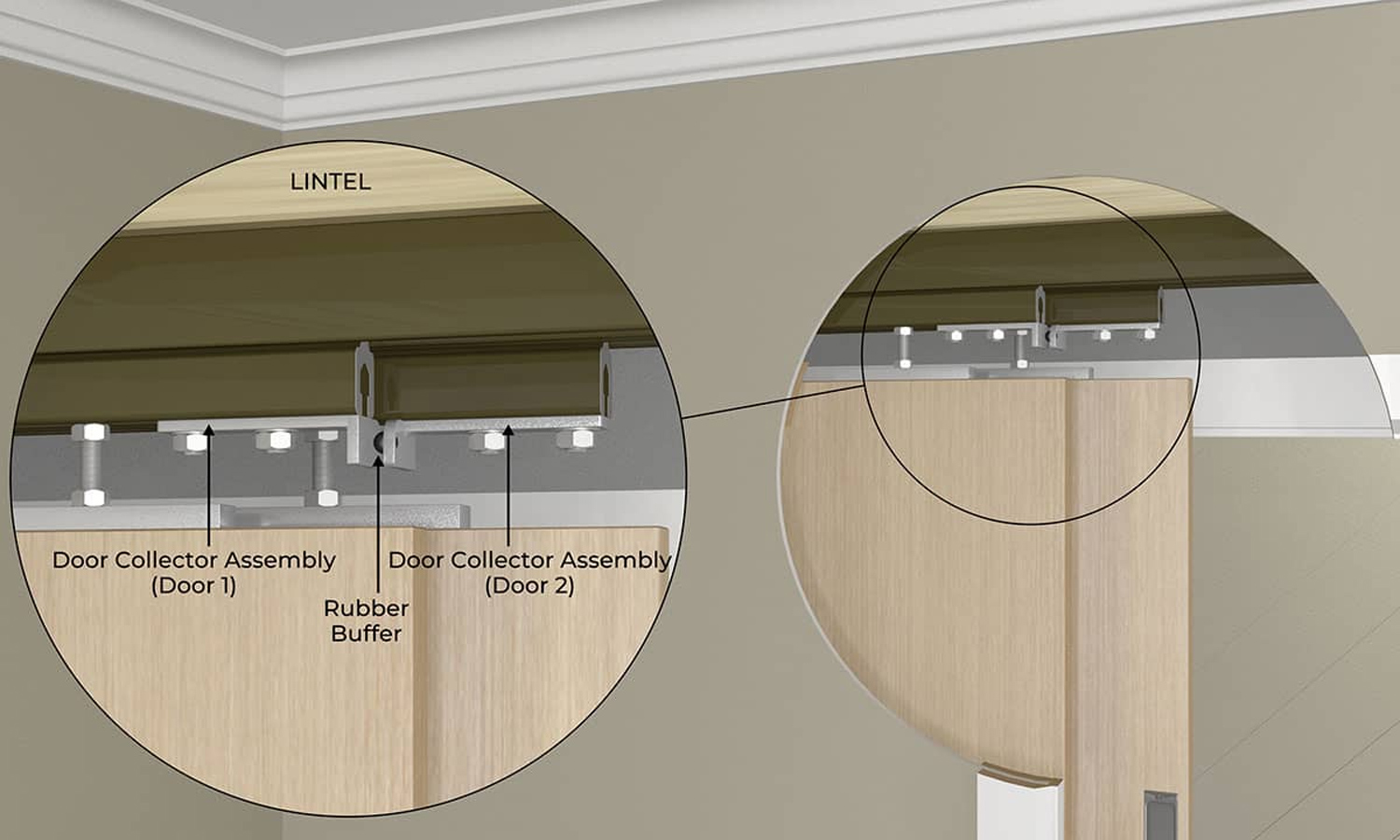

Shows in detail the door hanging arrangement and the door collector assembly.
Figure 2

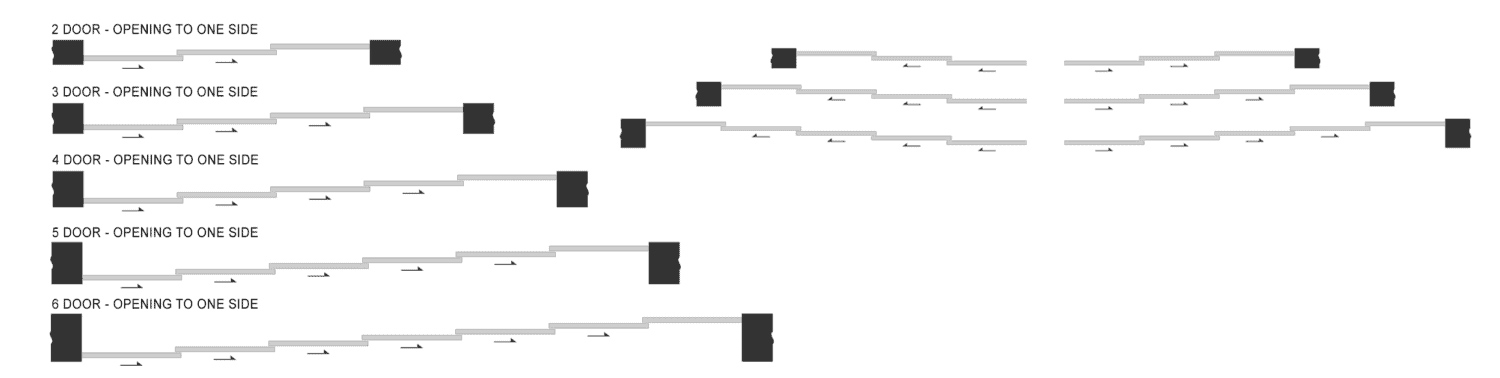

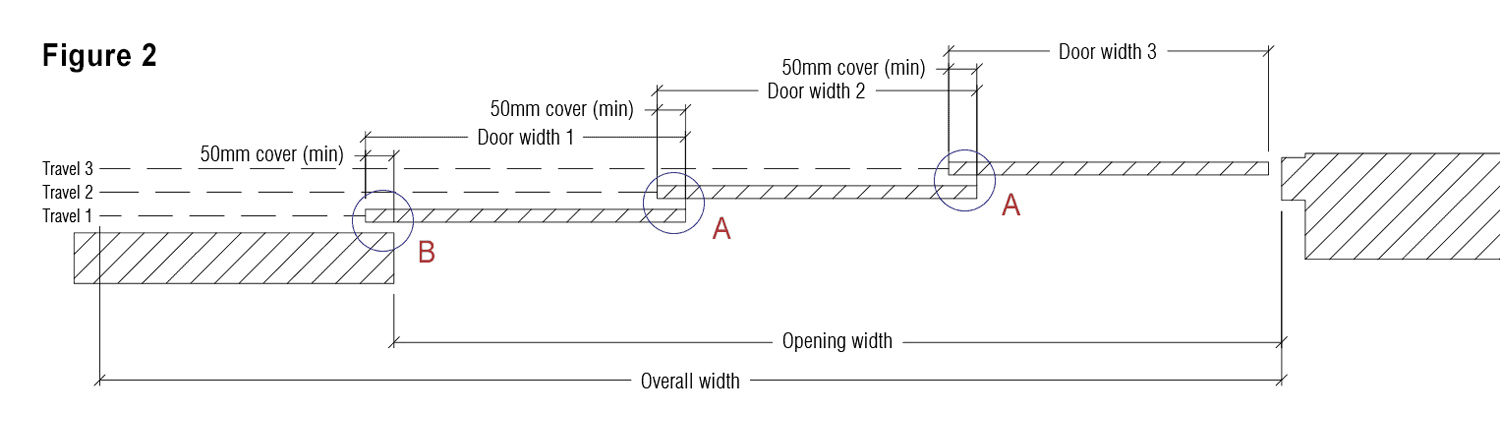

A plan view of a typical three door arrangement noting the various dimensional requirements. Arrangements can have from 2 to 6 doors opening to one side.

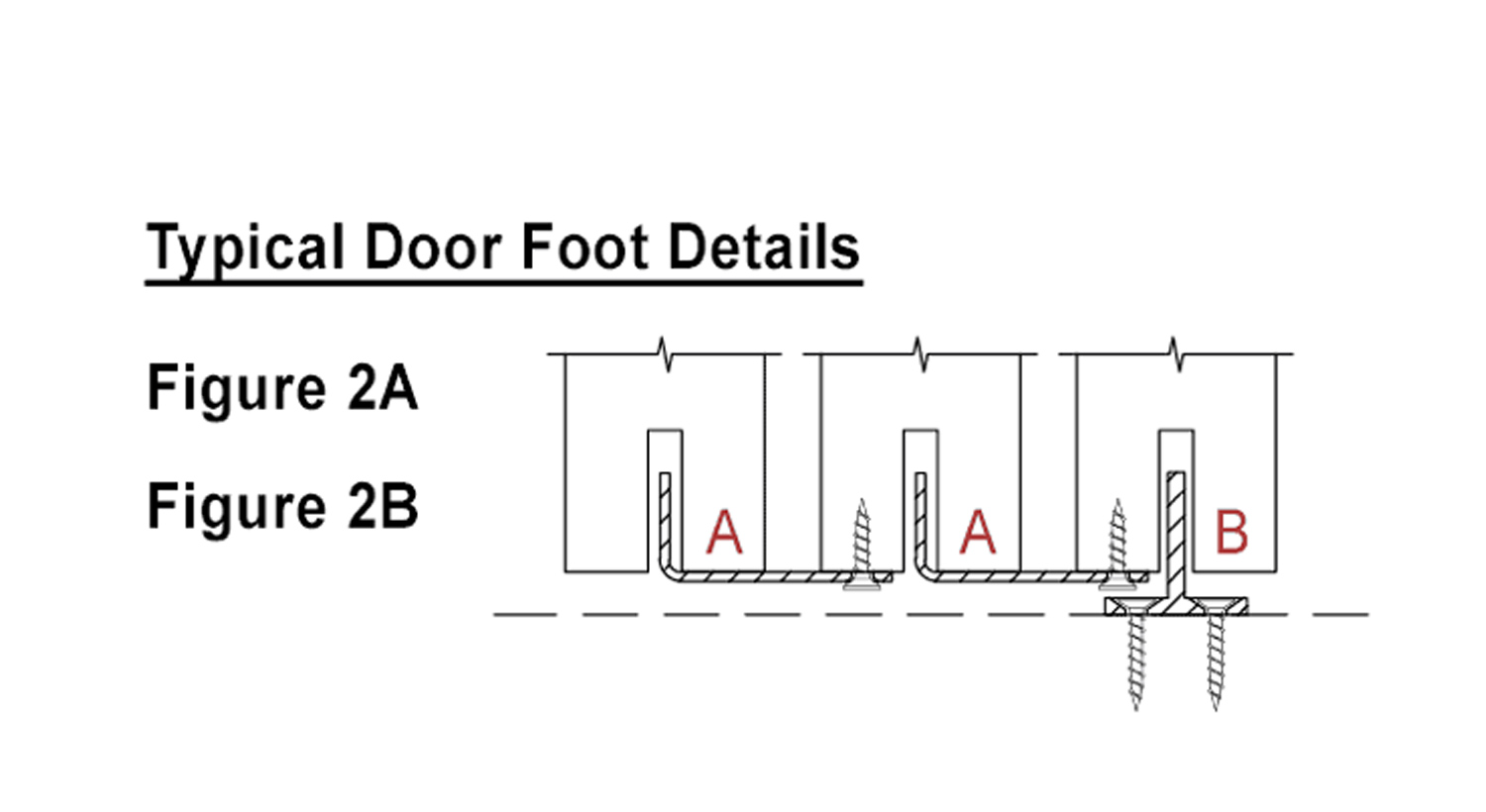

Figure 2A

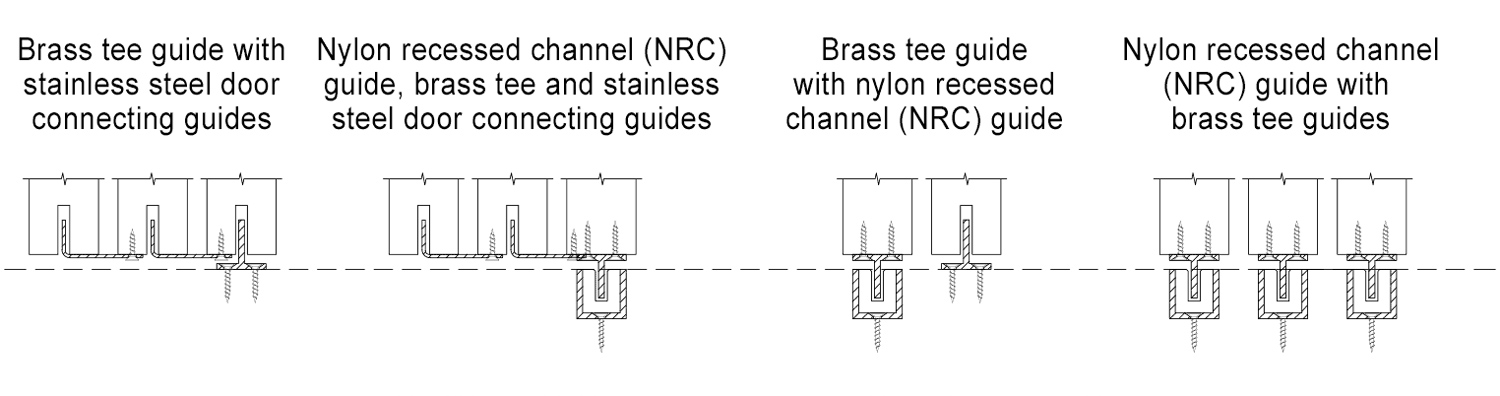

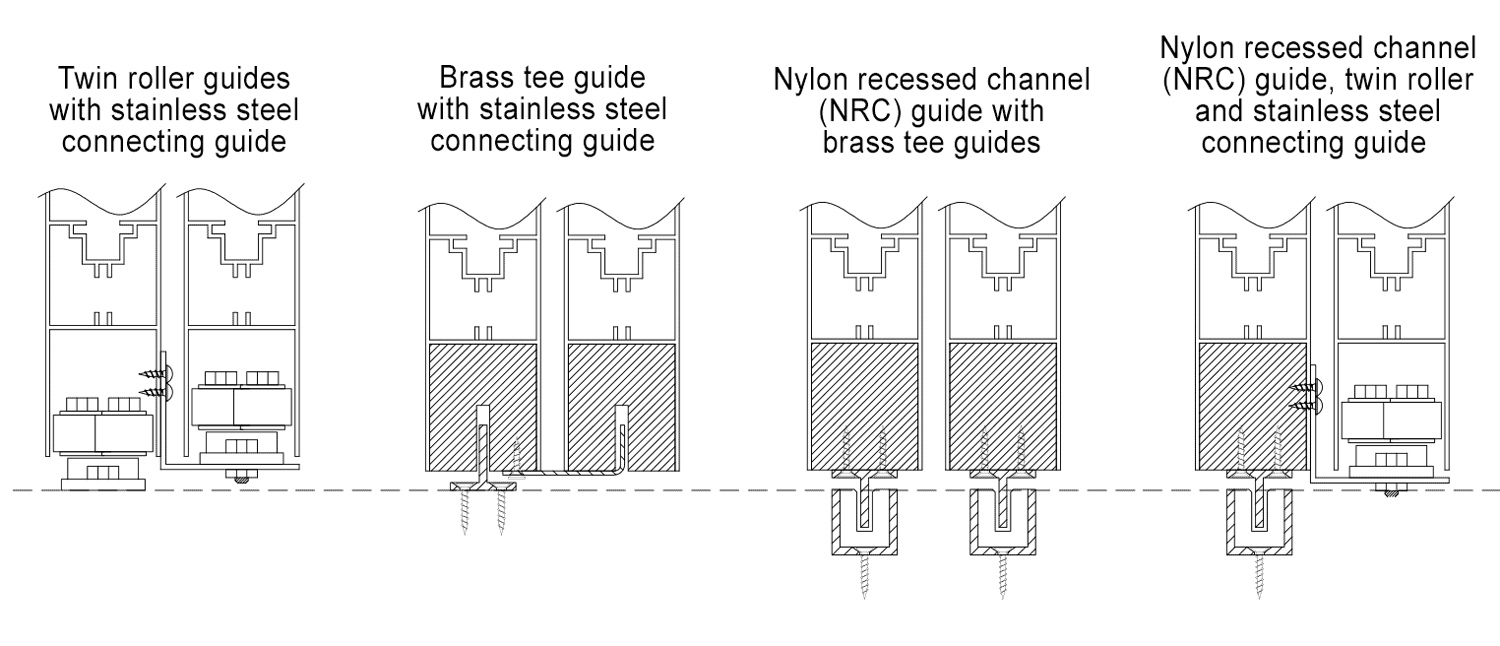

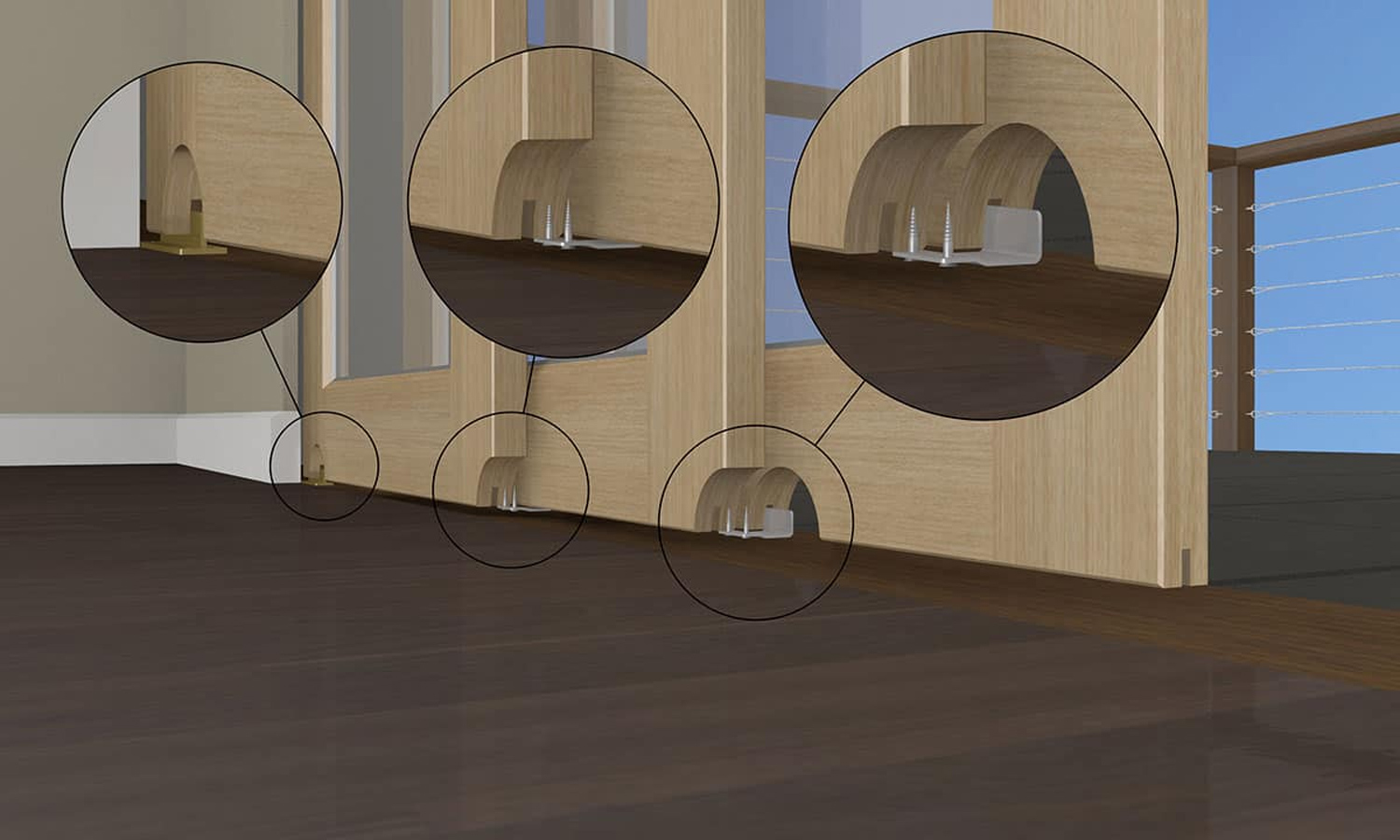

A typical door foot arrangement (Stainless steel connecting guides – 1.6 x 50mm long)
Figure 2B

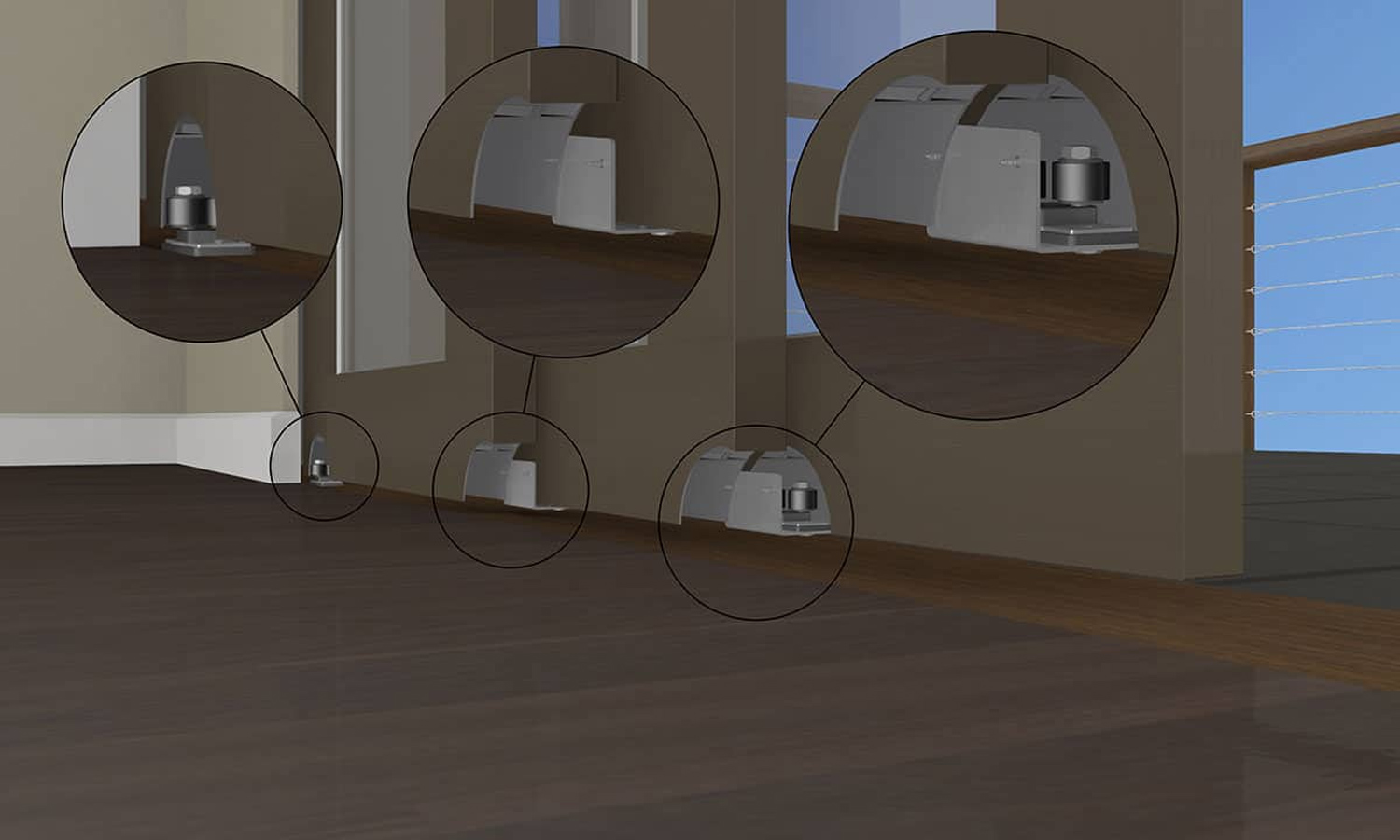

A typical door foot arrangement (Brass tee guides – 25 x 25 x 100mm)
The following information will assist our team to advise on Fitzroy® track system specification:
Specification:
Please note:

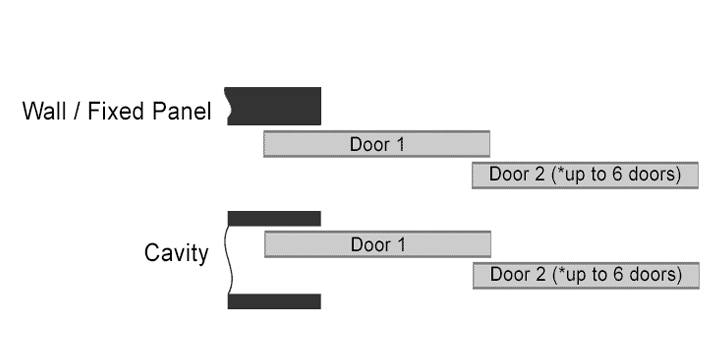

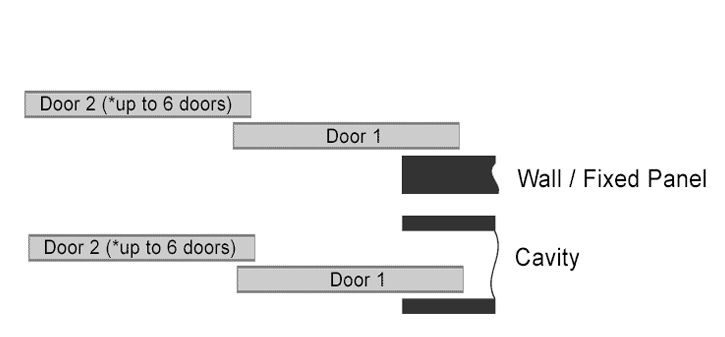

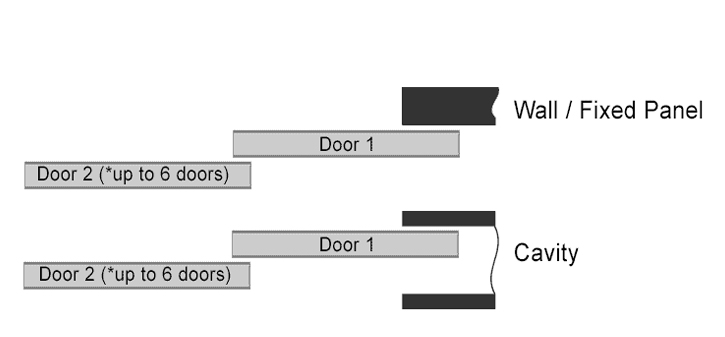

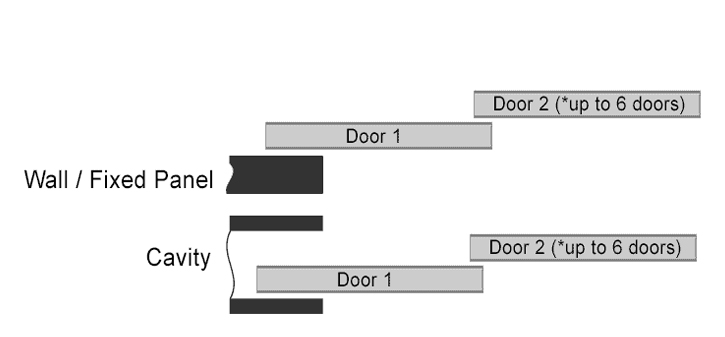

Contact us to advise which of the below four layouts and how many sliding doors are in your arrangement, and we will provide you with the correct order form to suit.
