A100 Alloy Light Fitzroy®

A100 Alloy Light Fitzroy®

Fitzroy® Sliding Door Systems

Home / Straight Sliding Tracks / A100 Alloy Light Fitzroy®

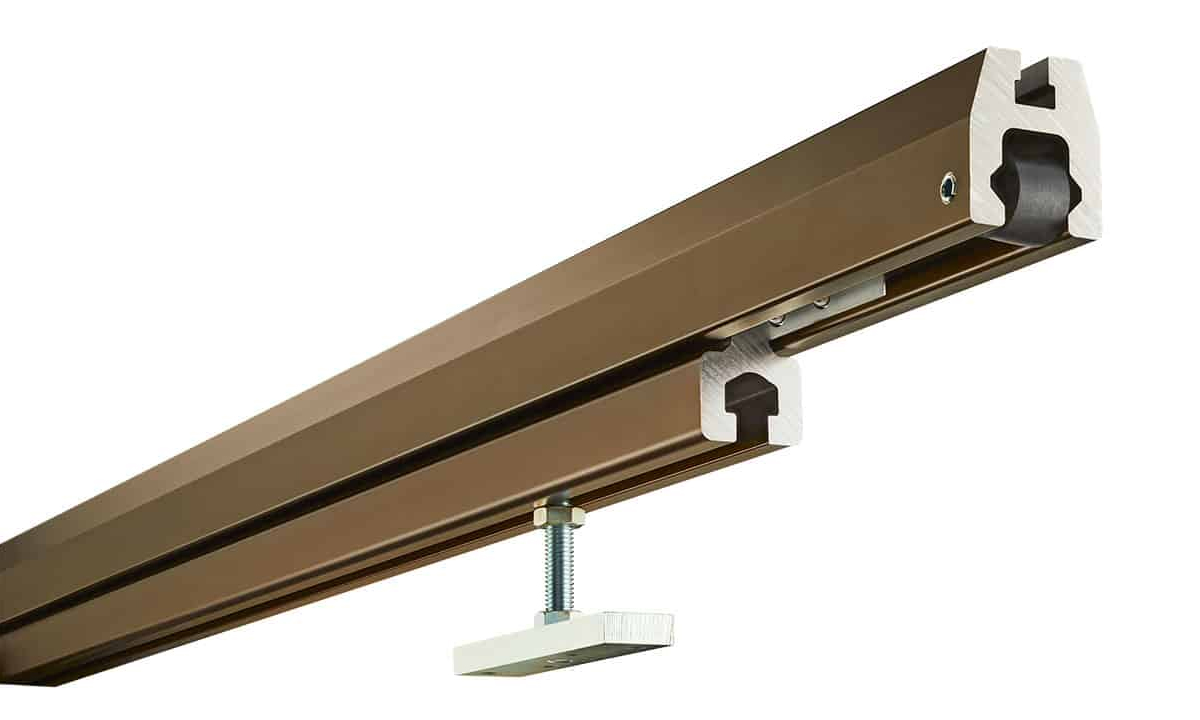

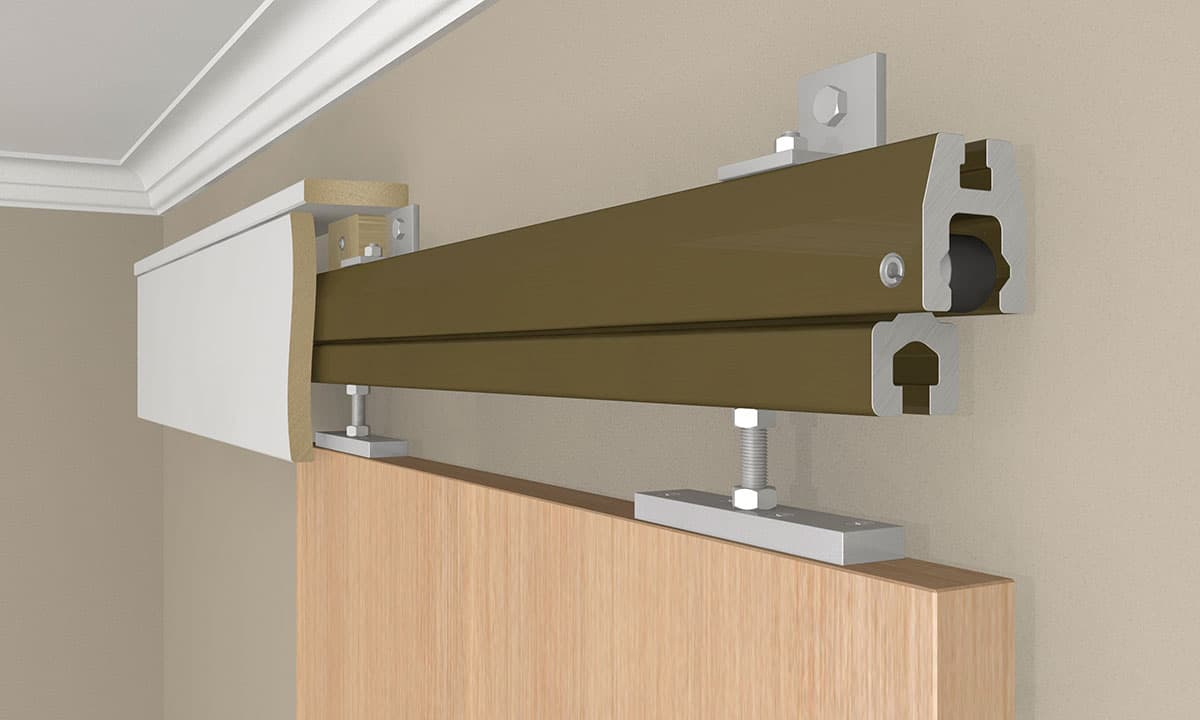

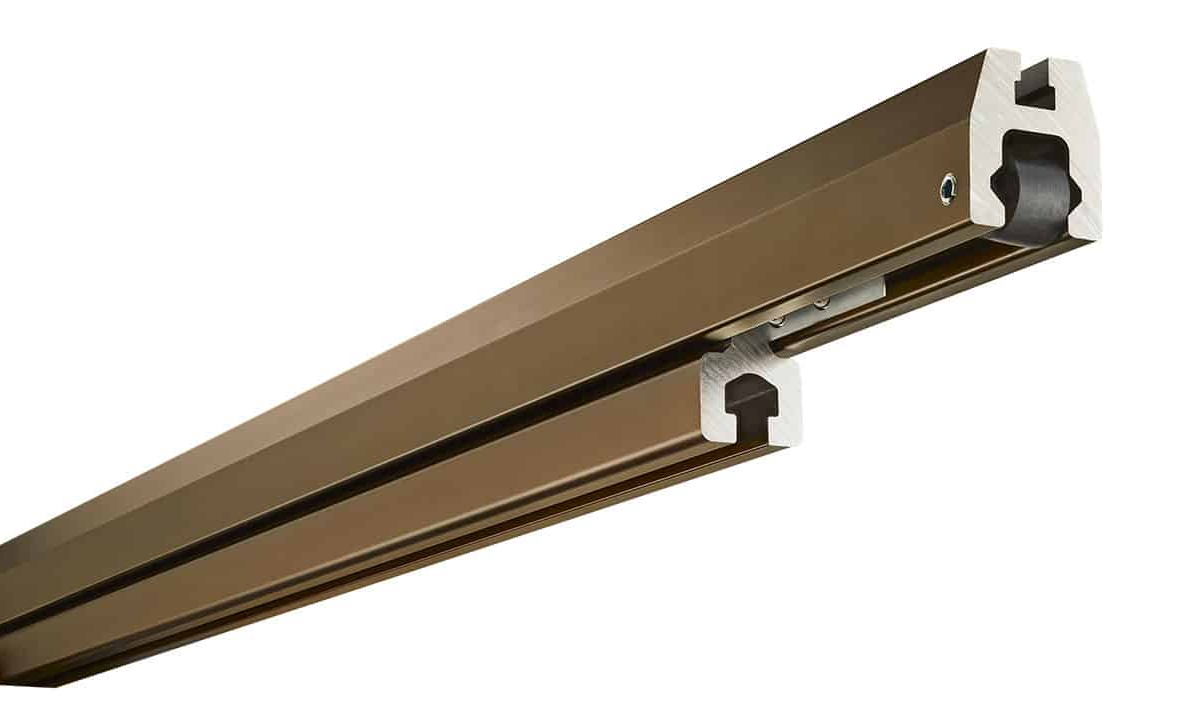

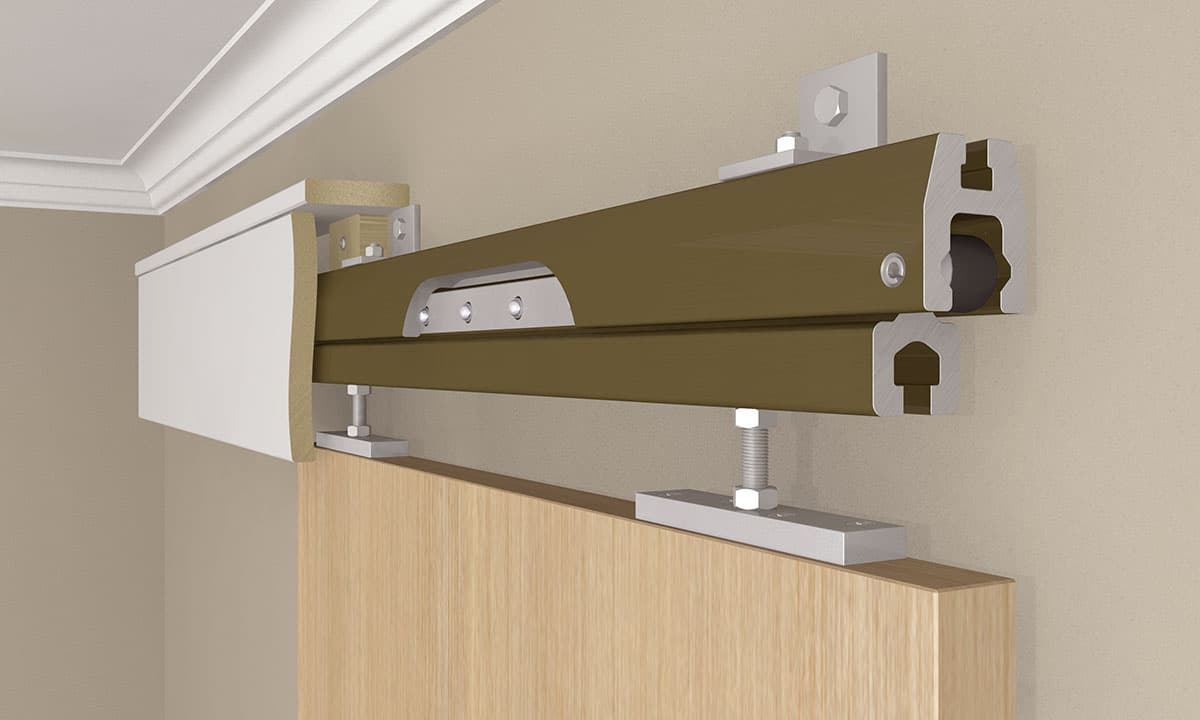

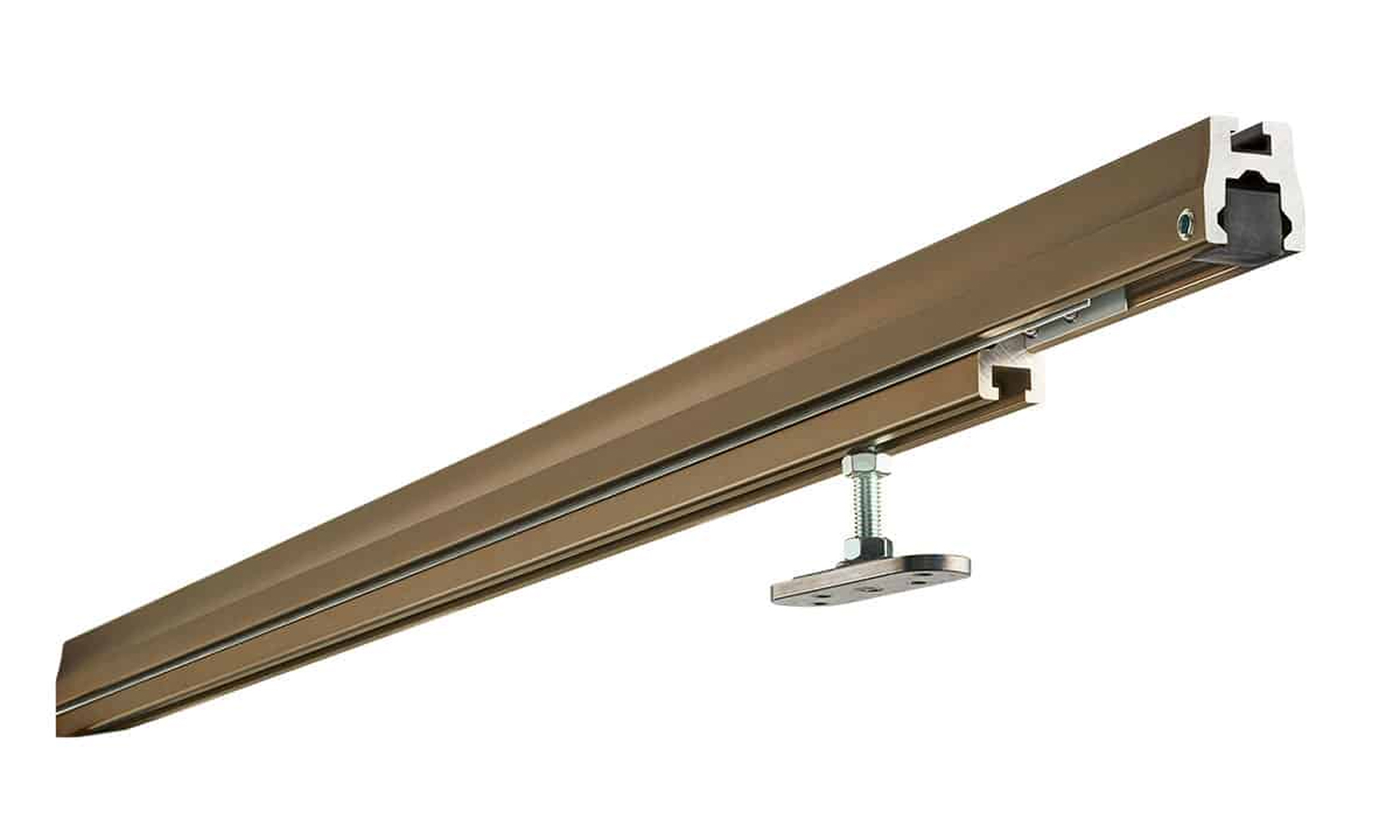

The A100 Alloy Light Fitzroy® is a hand operated straight sliding door track for doors up to 100kg

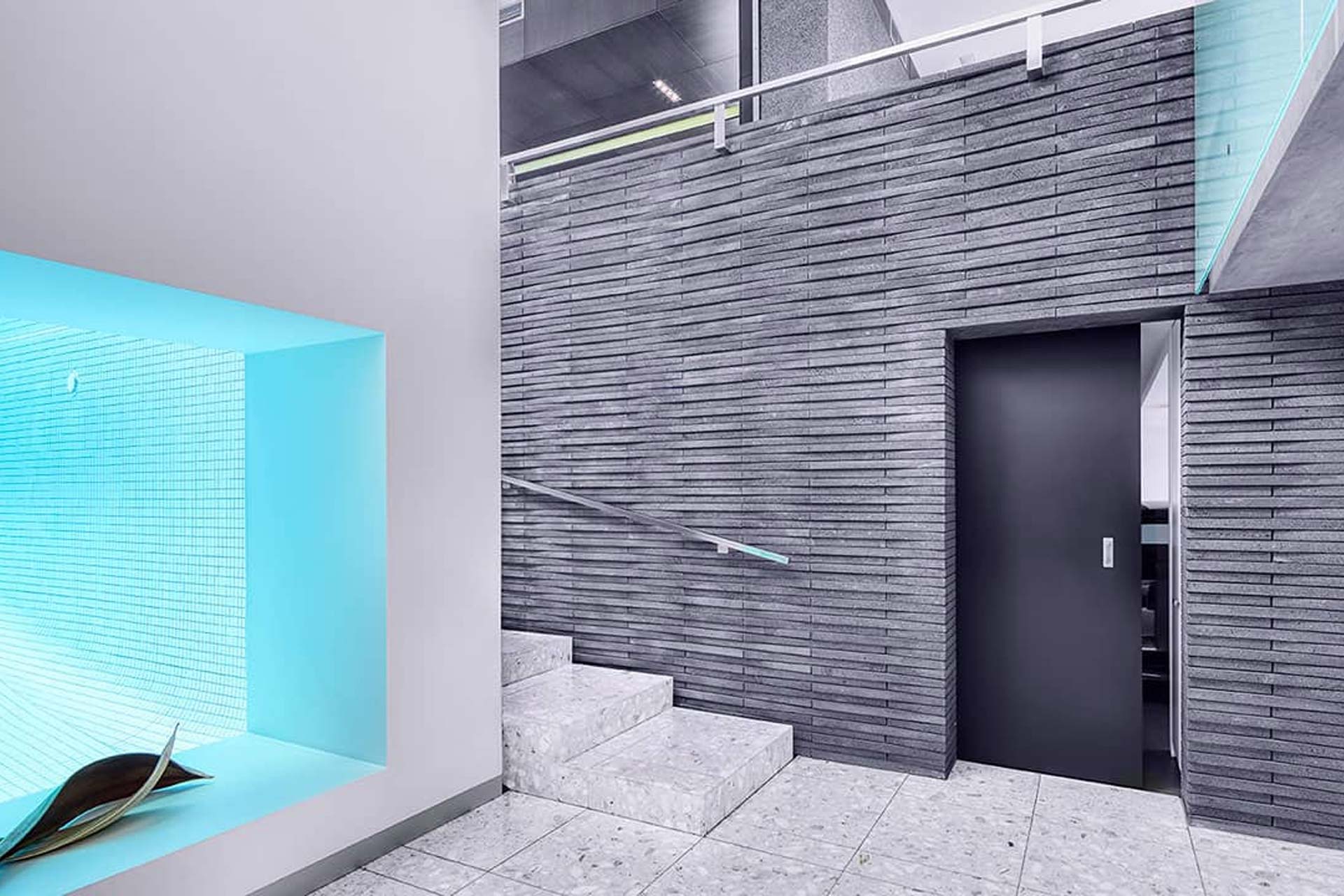

A100-Petrucelli-Residence

Why use Fitzroy®

  • Experienced technical and specification advice
  • Suits a large range of door widths and heights
  • Compatible with a wide variety of door constructions including solid core, semi-solid core, MDF, framed and frameless glass, aluminium, screens, steel framed with cladding and gates
  • Easy, smooth and reliable operation
  • Heavy duty with proven longevity and low maintenance requirements
  • Custom made to client requirements
  • Top hung with a range of fixing options and guides
  • Easily incorporated with other door hardware
  • Upgrade available for salt and other environments
  • DDA compliance can be achieved for certain weights and widths of door
  • Australian Made

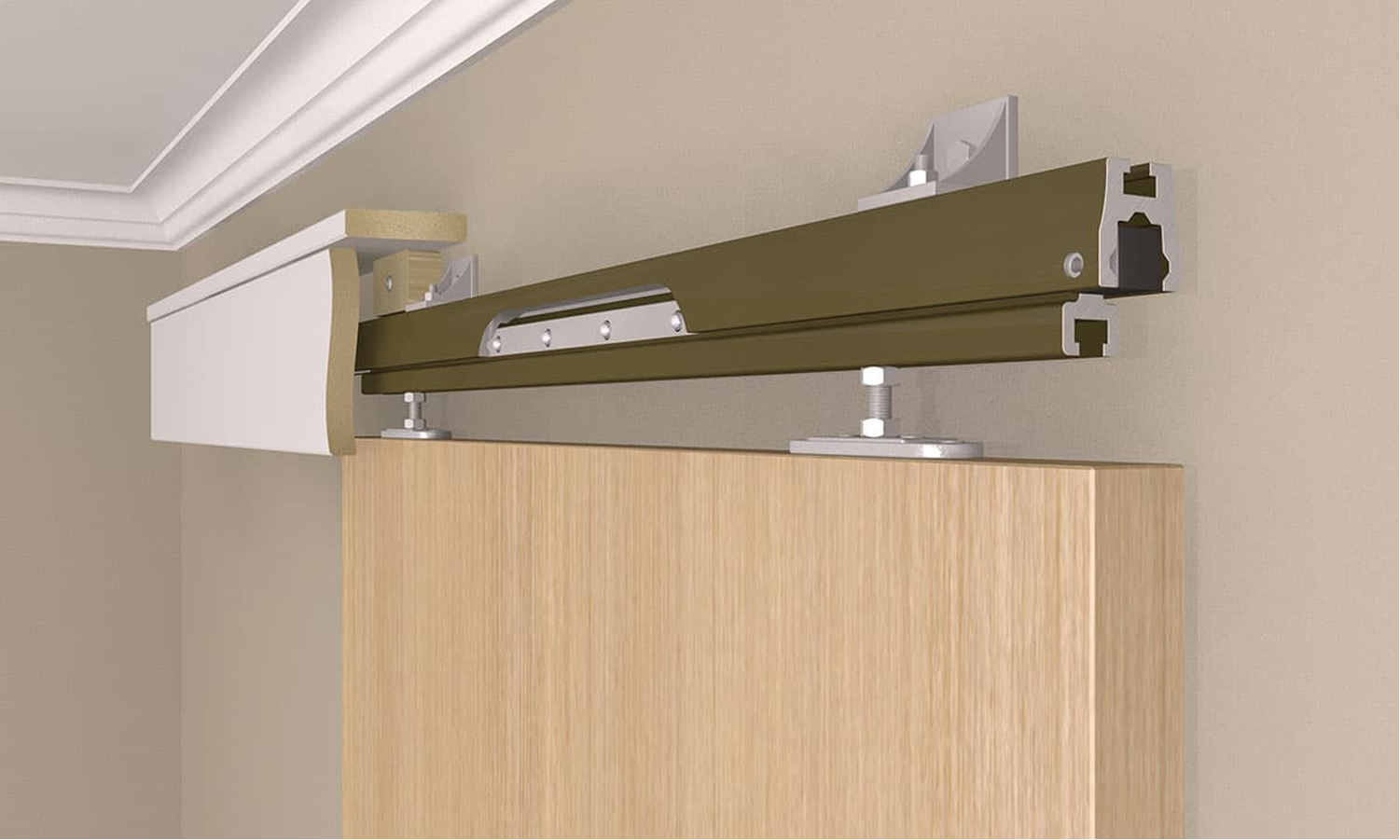

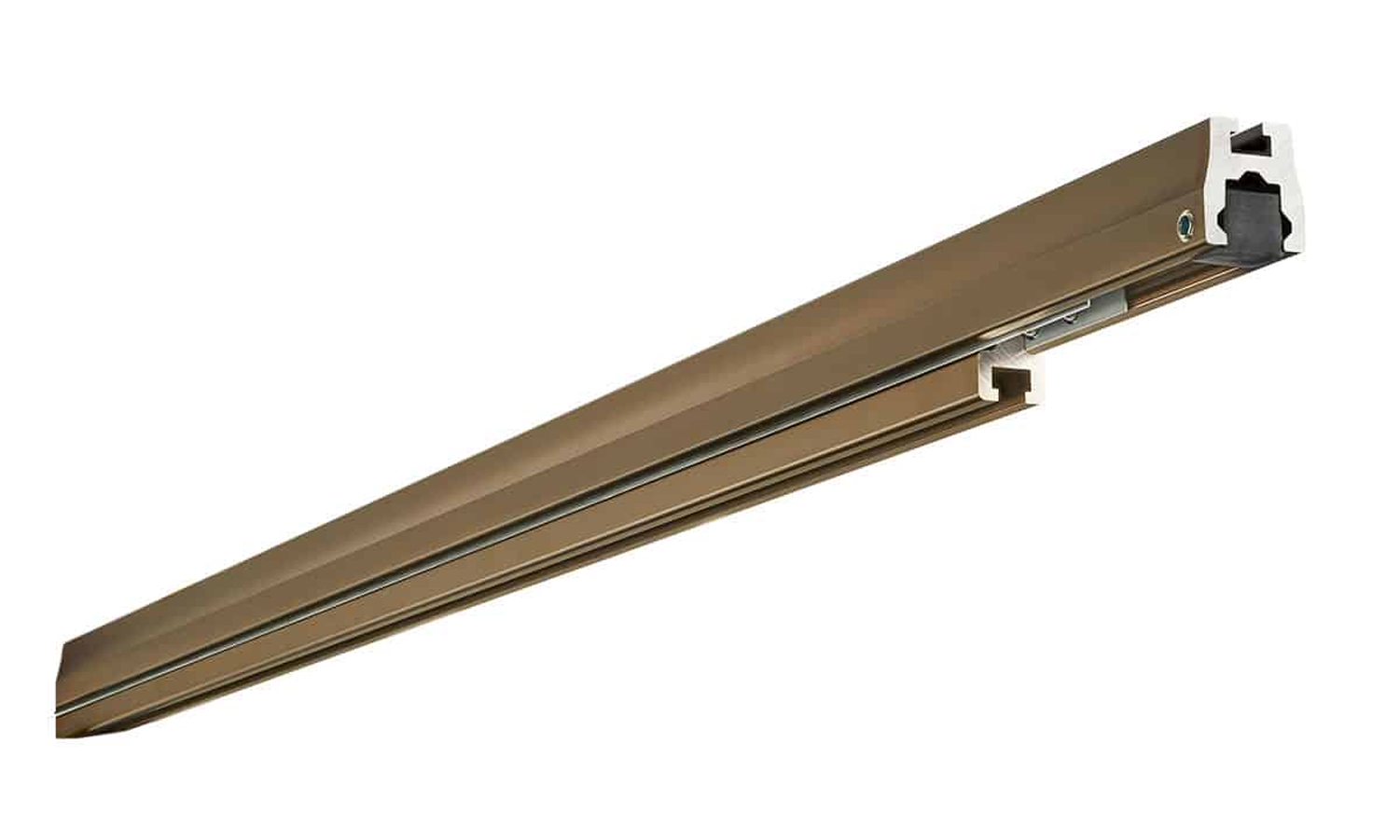

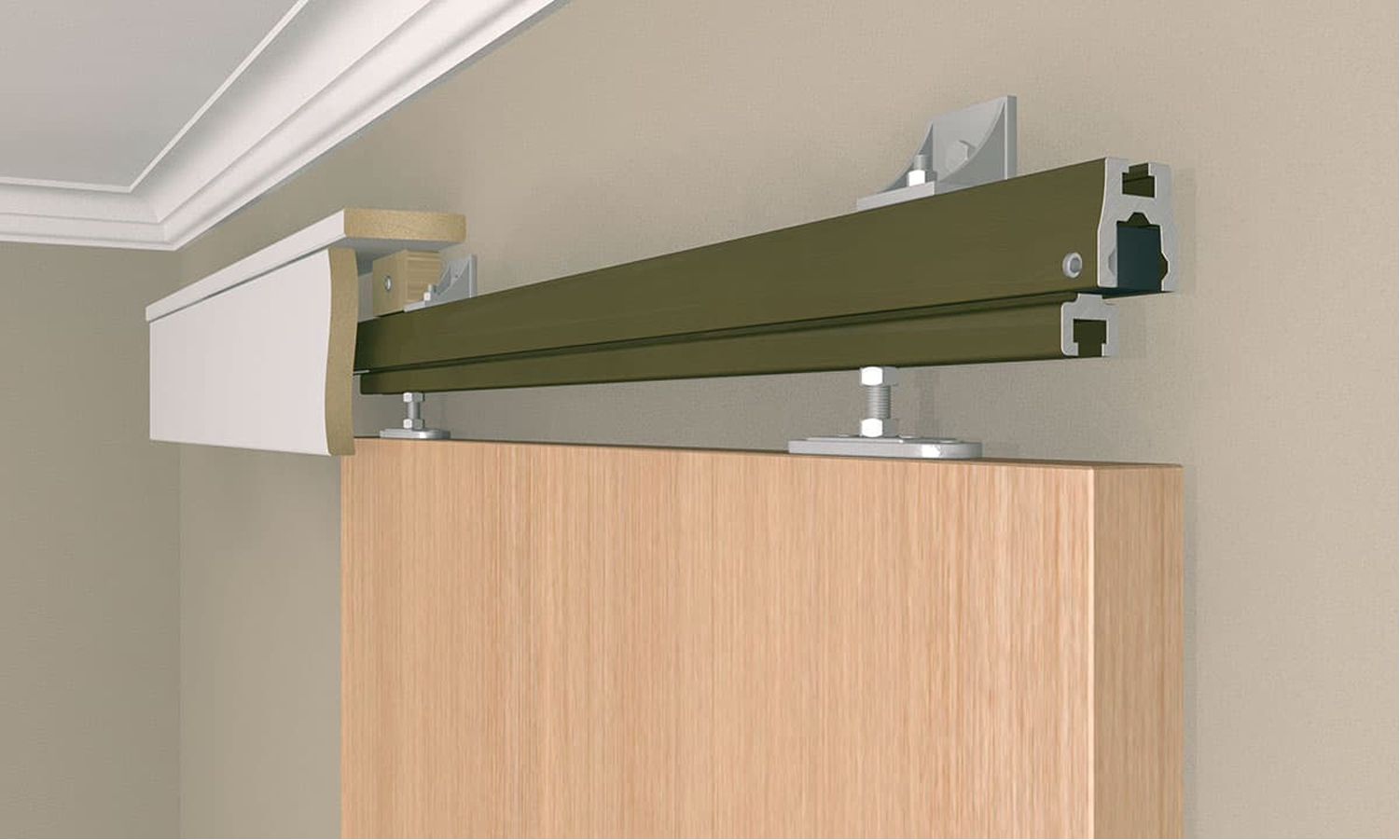

A100 Alloy Light Fitzroy®
A100 Alloy Light Fitzroy®
A100 Alloy Light Fitzroy®
A100 Alloy Light Fitzroy®

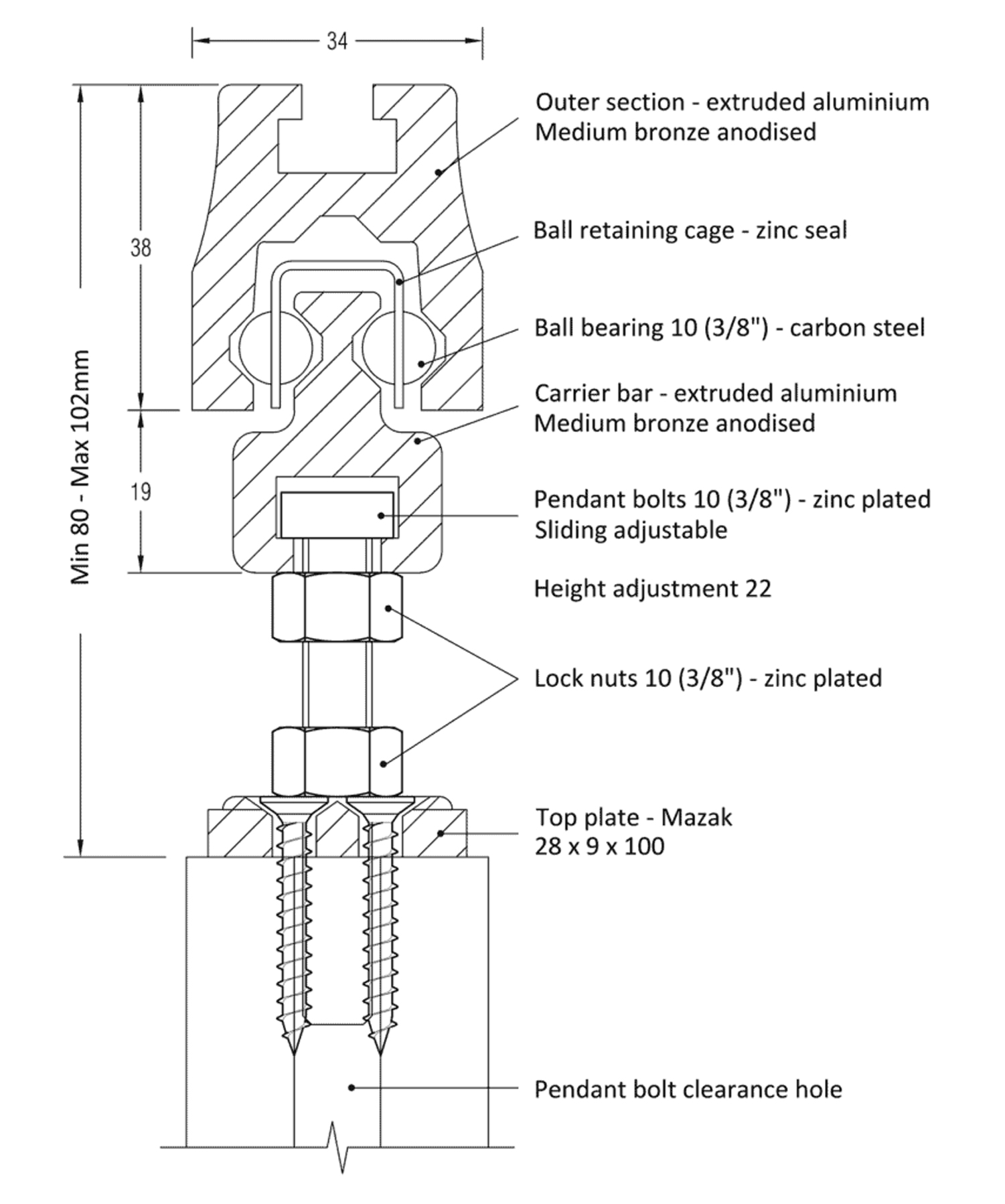

A100 details

Works with single doors, multiple doors and folding panels.

For doors heavier than 100kg:

The following information will assist our team to advise on Fitzroy® track system specification:

  • Door width, construction, thickness & weight
  • Door configuration and number of sliding doors
  • Application type and environment
  • Fixing and guide requirements

Specification:

  • A100 Alloy Light Fitzroy® sliding door track to suit doors under 100kg made to order by Fitzroy® Tracks Pty Ltd.

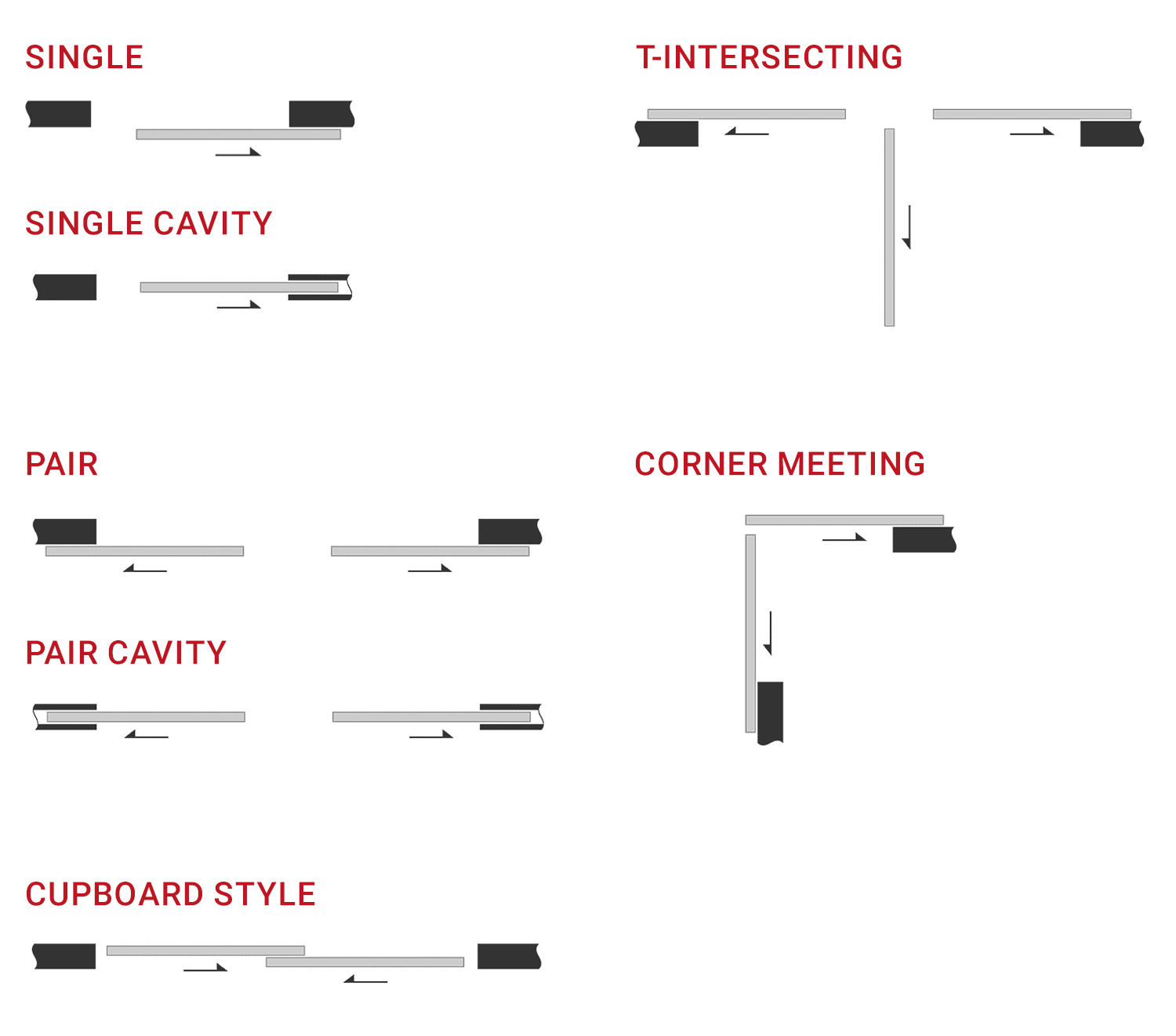

Configurations:

  • Also available in alternative configurations.
    See our parallel systems for multiple doors and our bifold and accordian systems for panels.

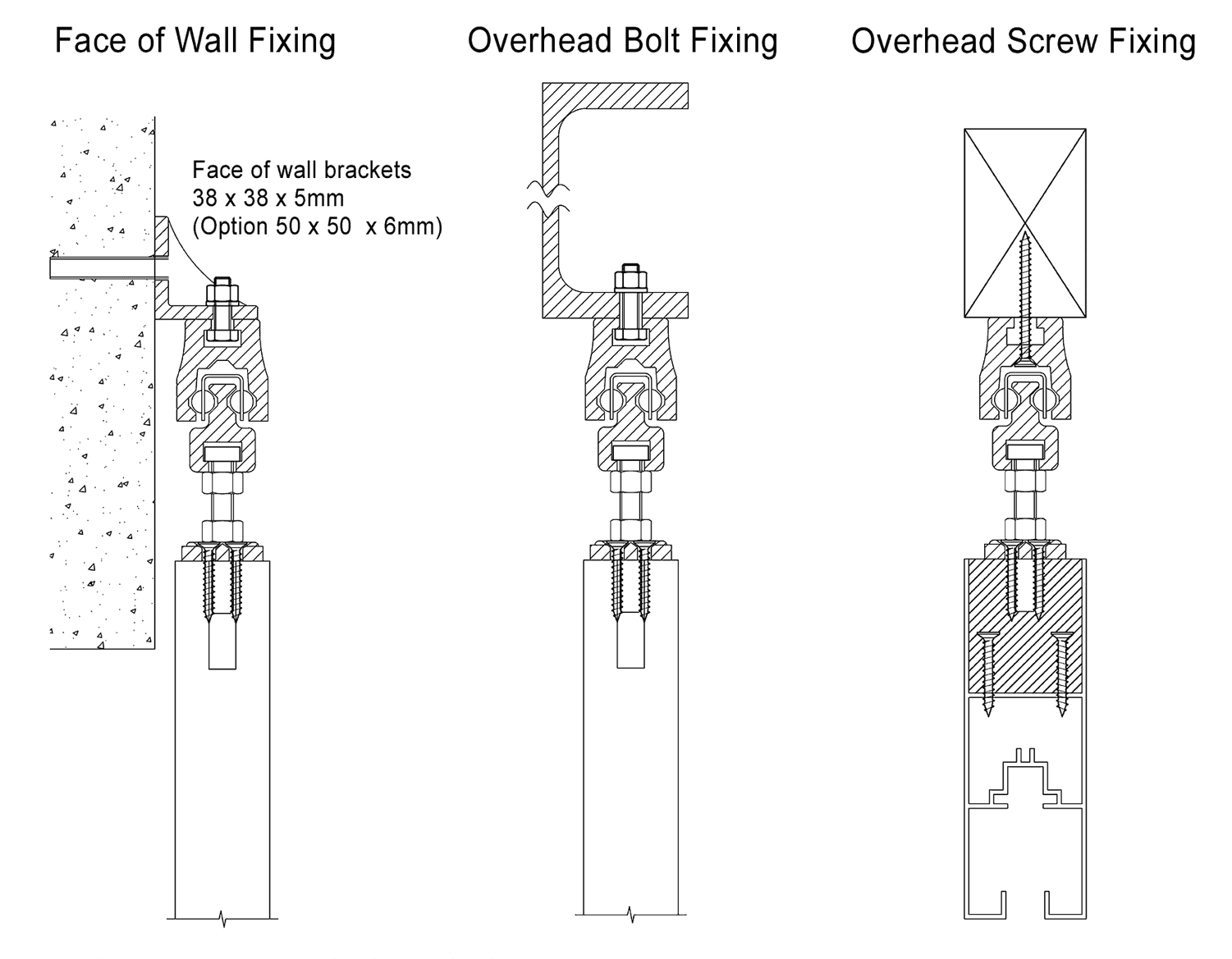

A100 Fixings

Please note:

  • Fitzroy® Tracks cannot be fixed overhead directly into concrete or masonry
  • Fixing centres not to exceed 750mm
  • Frameless glass doors will require a suitable patch fitting or top rail for fitting to Fitzroy® Tracks

Timber Doors

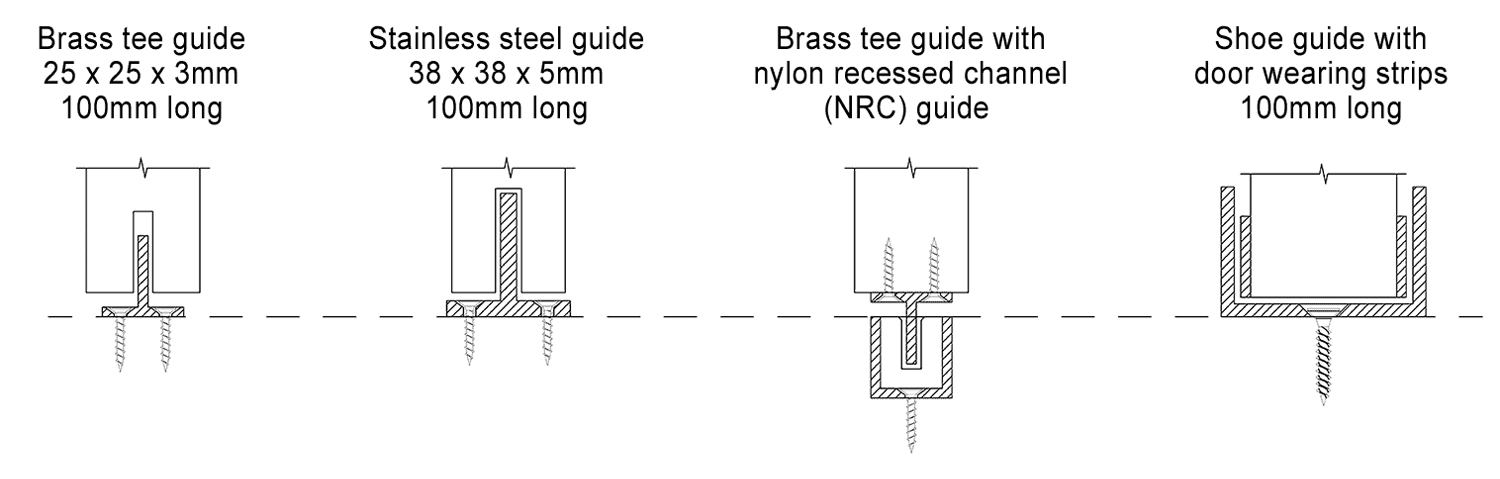

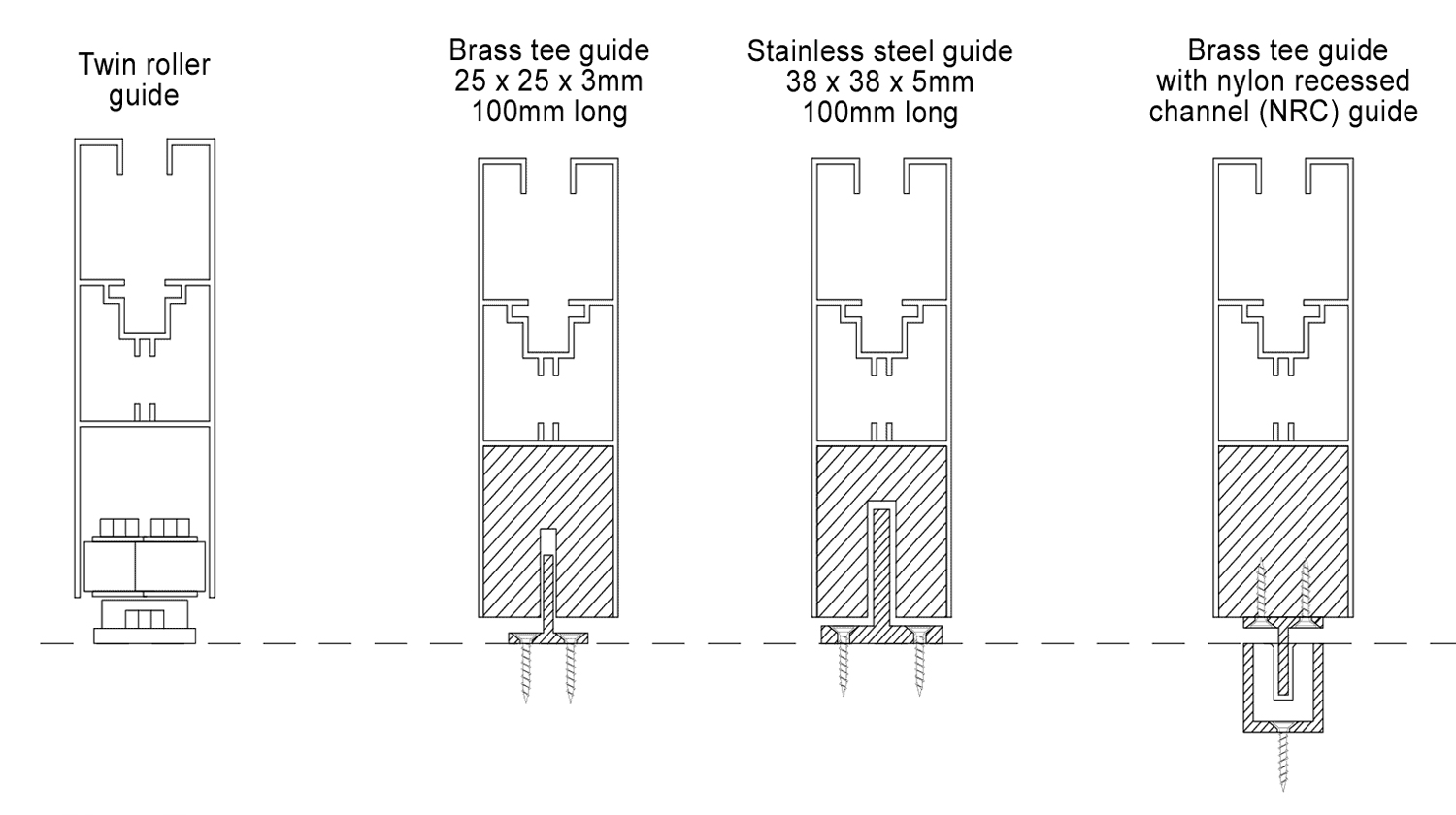

A100 Timber Guides

Aluminium Doors

Documentation

Order Forms

Warranty

Fitzroy® Tracks have a proven extensive service life providing clients decades of trouble free operation when installed and maintained correctly.

Maintenance

Fitzroy® Tracks have low maintenance requirements making it easy for the user to care for and ensure a lengthy service life for their track.
